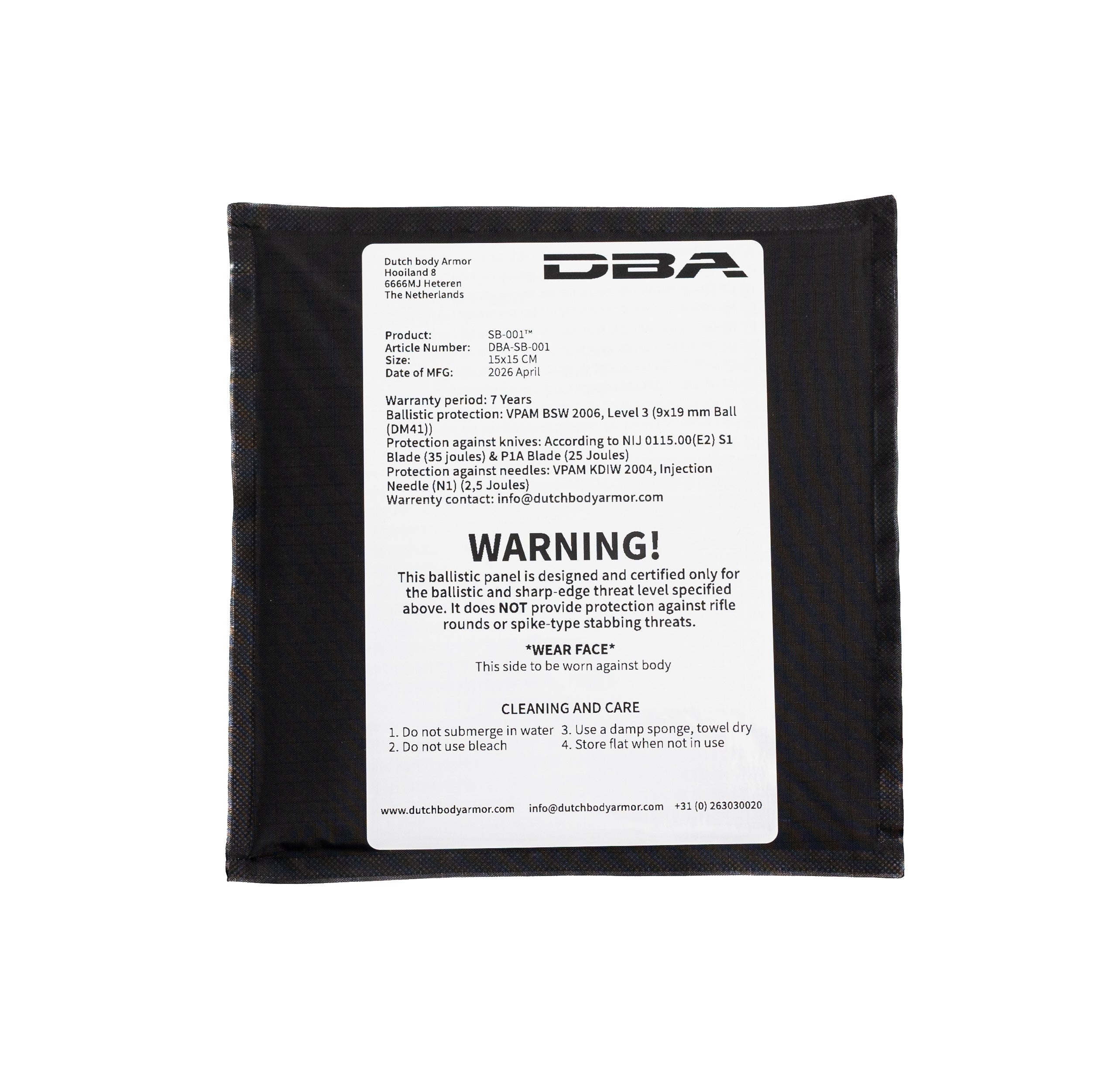

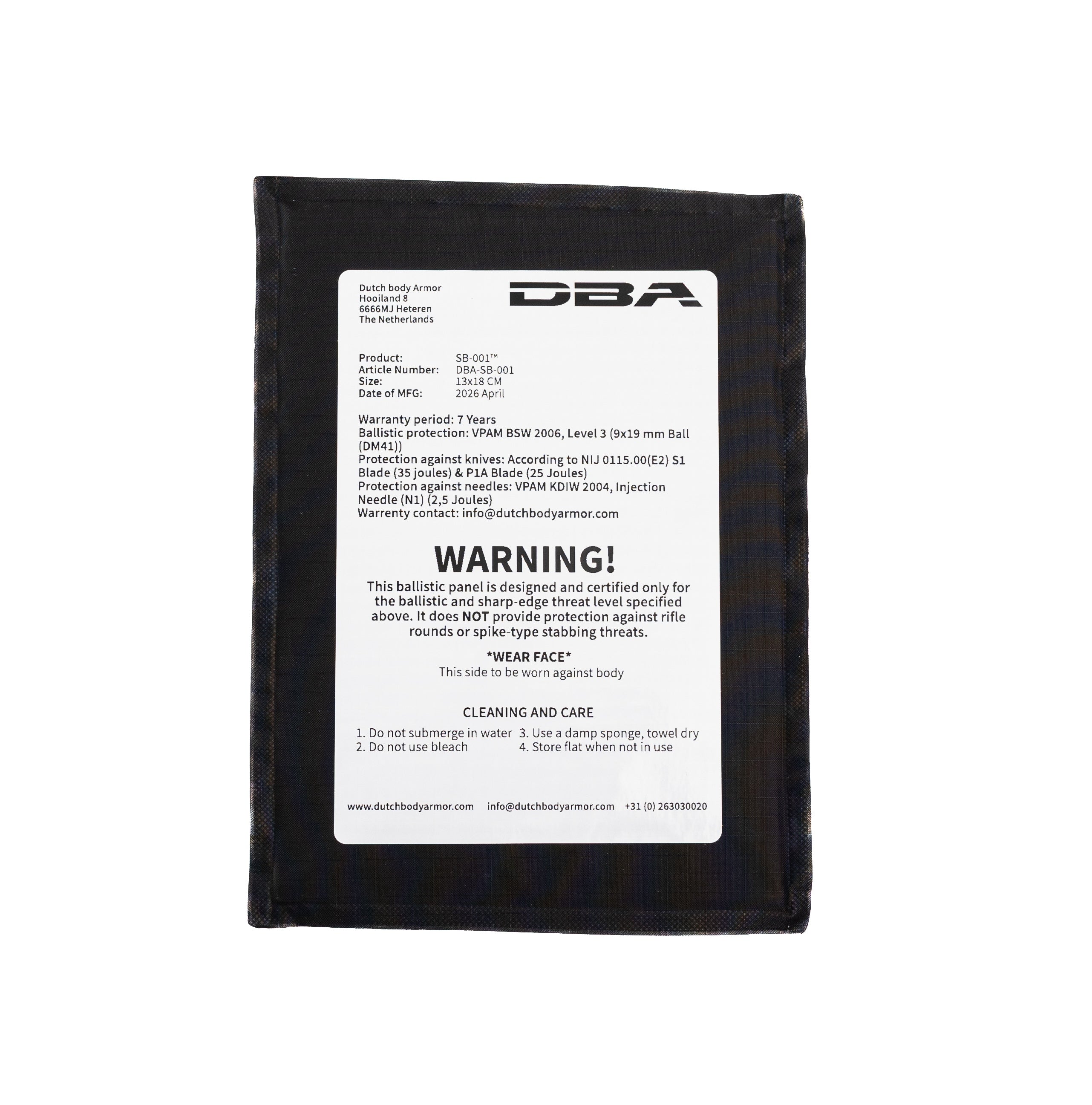

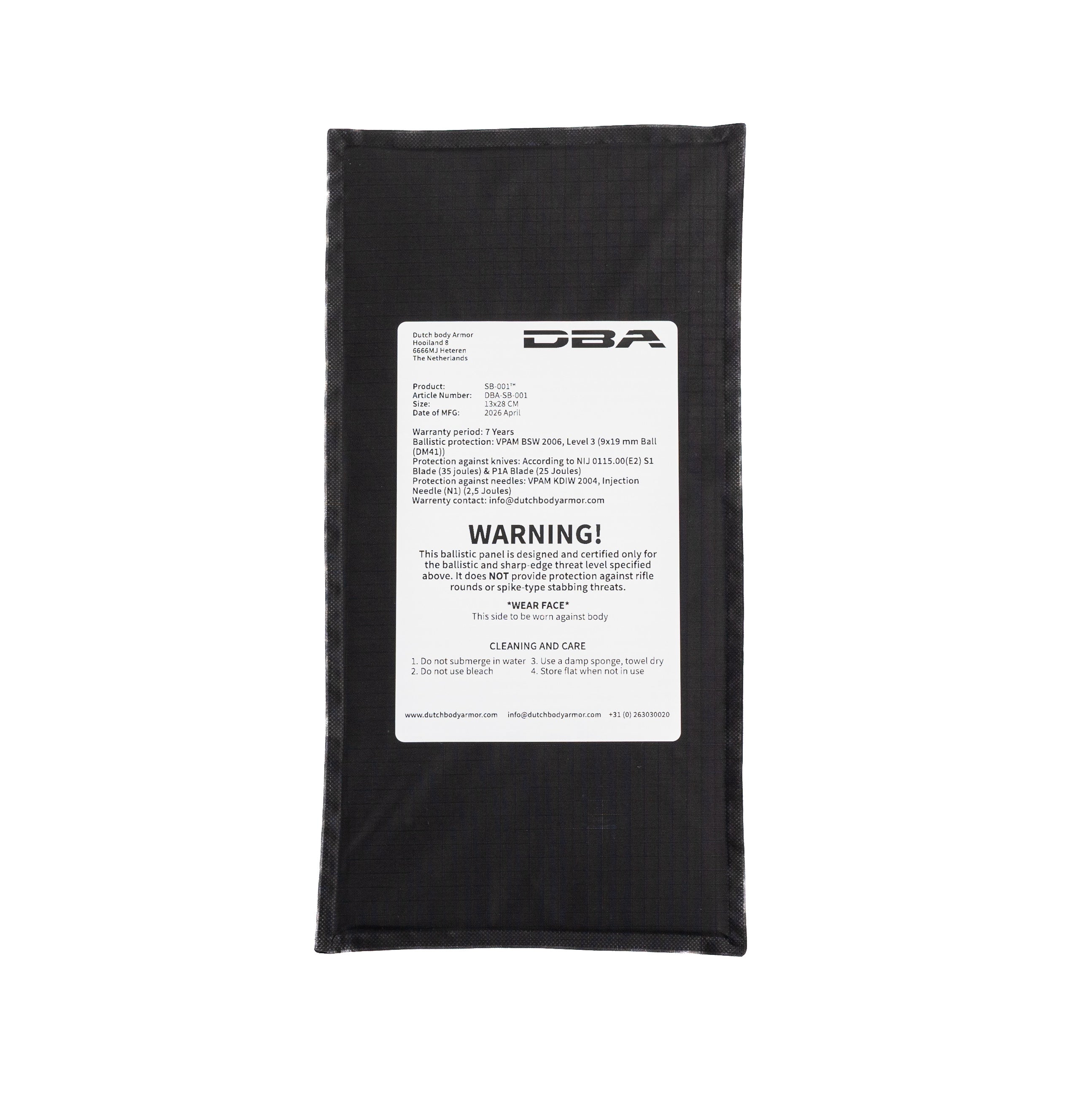

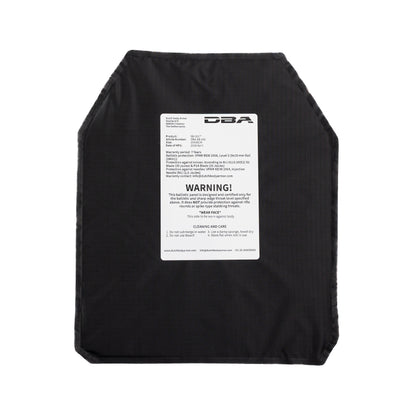

DBA SB-001™ SOFT ARMOR PANELE

Unsere ultradünnen SB-001 Softschutz-Paneele, entwickelt für eine unauffällige Integration mit zuverlässigem Schutz vor Schuss, Stich und Nadelbedrohungen, hergestellt in den Niederlanden.

BULLET-, STAB-, AND NEEDLE-RESISTANT

A 3-in-1 bullet-, stab-, and needle-resistant panel is advanced body armor designed to defend against multiple threats in a single system.

The DBA SB-001™ panel is built around this concept, featuring an ultra-thin 5 mm design that is flexible and easy to conceal under regular clothing.

Both the ballistic and needle tests have been officially conducted at the independent TNO laboratory in the Netherlands, a leading defense testing institute, resulting in an official VPAM Statement of Compliance certification.

In addition, the stab resistance was tested according to NIJ 0115.00 standards at E2 level using both the S1 blade and P1A blade, performed by the accredited US laboratory Element.

sb-001 certificerings sticker

The DBA SB-001™ has been tested to VPAM Level 3, providing protection against handgun threats such as 9×19 mm rounds like the DM41.

Standard (Ballistic) Projectile Velocity
VPAM BSW 2006 Level 3 9×19 mm Ball (DM41) 430 ± 10 m/s

In addition to its ballistic capabilities, the DBA SB-001™ has been tested according to NIJ 0115.00 (E2), providing stab protection up to 35 joules (S1) and 25 joules (P1).

Standard (Knife) Blade Type Energy
NIJ 0115.00 (E2) S1 & P1 35 J (S1)
25 J (P1)

It also provides protection against injection needle threats up to 2.5 joules.

Standard (Needles) Needle Type Energy
VPAM KDIW 2004 Injection Needle (N1) 2.5 J

MATERIALS

Fortschrittliche Materialien von Honeywell Solstice

In unseren SB-001 Paneelen verwenden wir hochwertige Materialien von Honeywell Advanced Materials, bekannt unter der Solstice Linie.

Wir setzen auf die neuesten und dünnsten verfügbaren Materialien, die eine außergewöhnliche Leistung und hohen Tragekomfort bieten.

TPU Materialien von Rivertex

Jedes Panel wird ultraschallverschweißt in einer TPU-Hülle versiegelt, unter Verwendung von Materialien des zertifizierten niederländischen Lieferanten Rivertex.

Diese Schutzschicht stellt sicher, dass das ballistische Paket zu 100% wasserdicht ist und vollständig vor Schweiß, Staub und anderen Verunreinigungen geschützt bleibt. Dadurch können wir auf jedes Panel eine Garantie von 7 Jahren gewähren.

ULTRASONIC SEALING

Bei Dutch Body Armor sind unsere Softschutz-Paneele in einer TPU-Hülle eingeschlossen und werden mittels Ultraschalltechnologie versiegelt. Dadurch sind sie vollständig wasserresistent und geschützt vor Feuchtigkeit und Schweiß, sodass die Leistung langfristig erhalten bleibt.

Auf diese Weise können wir eine Garantie von 7 Jahren bieten, also 2 Jahre länger als der Standard, um dauerhaften Schutz sicherzustellen.

SPECIFICATIONS

Physische Spezifikationen

Dicke: 0,50 mm

Materialien
  • Fortschrittliche Materialien von Honeywell Solstice
  • TPU Material von Rivertex
Garantie

Alle Paneele werden mit einer Garantie von 7 Jahren geliefert.

...
